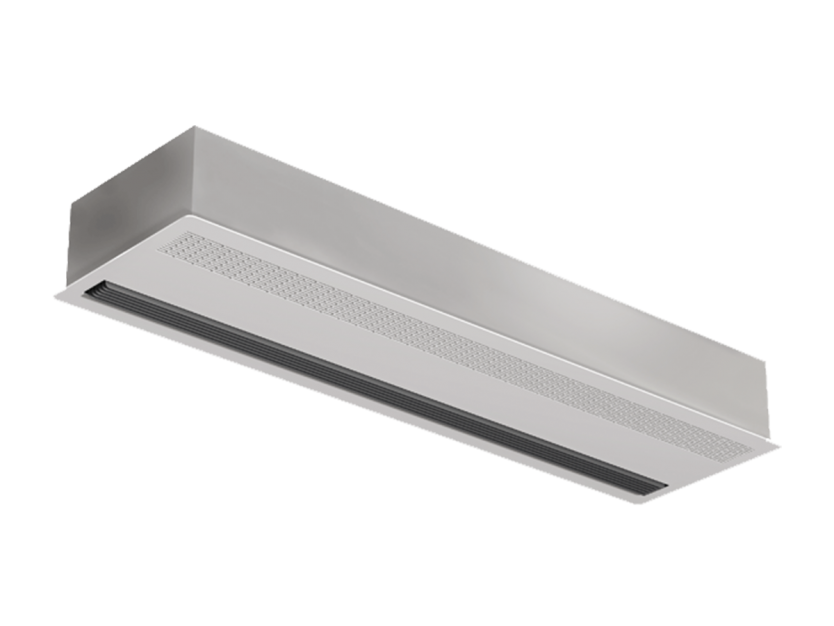

Built-in warm water and electric air curtain SWR / SER
Solution for comfort and savings for false ceilings
- Recommended installation height: 2.5 m
- Lengths: 1, 1.5 and 2 m
- Orientable jet blowing grille
- Hot water heating from 5.5 to 14 kW (SWR)
- Electric heating from 3 to 18 kW (SER)
- Thickness of built-in housing: 198 mm
- Under face in white lacquered aluminium RAL 9016
- Available accessories: control unit, thermostat 2 settings, door regulator
Technical details
Parameters
TECHNICAL SPECIFICATIONS
Built in hot water curtain SWR (connection 1/2” female left-hand)
| SWR 210 | SWR 215 | SWR 220 | ||
| Thermal power (*) | kW | 7 / 5.5 | 11 / 8 | 14 / 11 |
| Maximum / minimum air flow rate | m3/h | 1 000 / 700 | 1 600 / 1 000 | 2 000 / 1 400 |
| ΔT water (*,** ) | °C | 24 / 21 | 24 / 20 | 23 / 20 |
| Water volume | l | 0.5 | 0.9 | 1.1 |
| Electrical supply | 1 x 230 V + N - 50 Hz | |||
| Current absorbed | A | 0.4 | 0.6 | 1 |
| Sound level PV / GV (***) | dBA | 41 / 49 | 37 / 50 | 44 / 53 |
| Grille length | mm | 1 042 | 1 552 | 2 042 |
| Grille width | mm | 432 | ||
| Height | mm | 198 | ||
| Mass | kg | 21 | 30 | 42 |
| Maximum installation height | m | 2.5 | ||
* Water temperature 80/60 °C, air inlet temperature +15 °C Protection class: normal use (IP20)
** ΔT: for min/max flow rate
*** Conditions: Distance 3 metres. Directional factor: 2. Equivalent absorption area: 200 m²
** ΔT: for min/max flow rate
*** Conditions: Distance 3 metres. Directional factor: 2. Equivalent absorption area: 200 m²
Built in electric curtain SER 230 V single phase or 400 volt three-phase
| SER 210 | SER 215 | SER 220 | ||
| Thermal power (single phase 230 V) | kW | 5 / 3 | 6.8 / 4.5 | 10 / 6 |
| Thermal power (three-phase 400 V) | kW | 9 / 6 | 11.3 / 6.8 | 18 / 12 |
| Maximum / minimum air flow rate | m3/h | 1 200 / 650 | 1 750 / 950 | 2 400 / 1 300 |
| Electrical supply | 3 x 400 V + N - 50 Hz ou 1 x 230 V + N - 50 Hz |
|||
| Current absorbed (single phase 230 V) | A | 21.7 | 29.6 | 43.5 |
| Current absorbed (three-phase 400 V) | A | 13 | 16.3 | 26 |
| Sound level PV / GV (***) | dBA | 34 / 50 | 34 / 50 | 40 / 54 |
| Grille length | mm | 1 042 | 1 552 | 2 042 |
| Grille width | mm | 432 | ||
| Height | mm | 198 | ||
| Mass | kg | 22.5 | 32.3 | 43.5 |
| Maximum installation height | m | 2.5 | ||

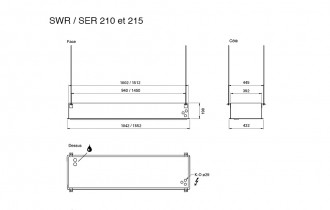

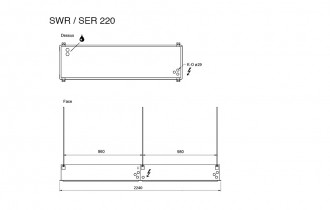

Dimensions
