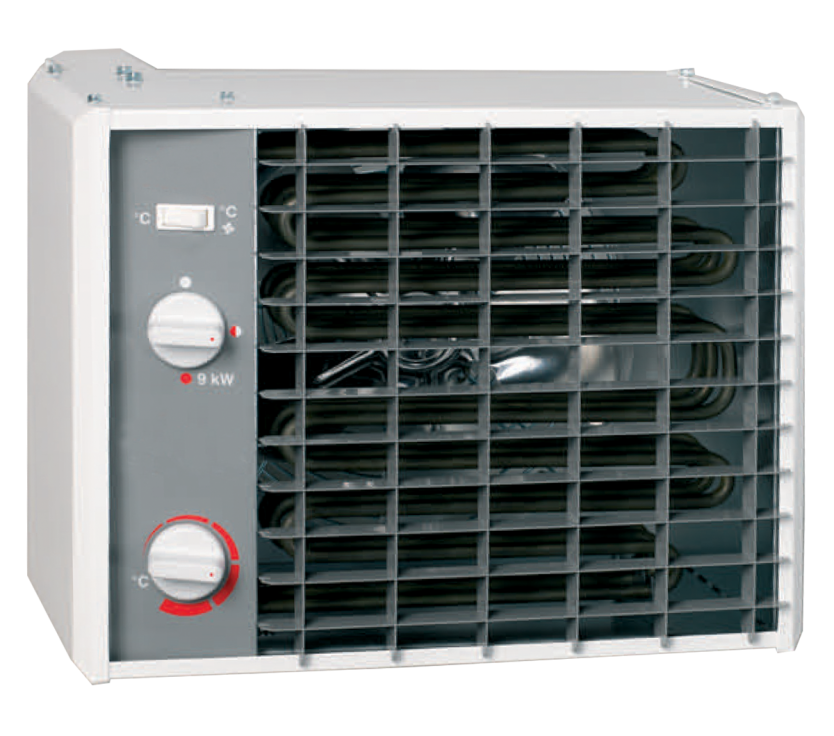

RT electric unit heater

Solution particularly suited to heating buildings of the type:

  • small depots
  • stores, garages
  • storage areas
  • shop floors
  • shops

Advantages

  • Appliance authorised by the safety regulations in establishments open to the public
  • Simple to install
  • Low investment cost
  • Overheating protection
  • Fast start-up
  • Virtually non-existent maintenance

Technical details

Description

RT CONTROL AND REGULATION

RT 5/9

  • Power selector• Stop / 1 speed / 2 speeds
  • Ambiance thermostat adjustable from 5 to 35 °C
  • Heating + ventilation switch permanent / regulated
  • Fixed wall panel, inclined at 10°
  • Overheating protection with manual reset



RT 15

  • Ambiance thermostat adjustable from 5 to 35 °C
  • Green “on” indicator lamp
  • Wall panel orientable downwards / sideways
  • Overheating protection with manual reset
  • Remote control of up to 4 appliances, to be chosen on option



RT 20/30

  • Wall panel orientable downwards / sideways
  • Green “on” indicator lamp
  • Overheating protection with manual reset
  • Individual thermostat, to be chosen on option
  • Remote control of up to 4 appliances, to be chosen on option

Parameters

TECHNICAL CHARACTERISTICS

    RT 5 RT 9 RT 15 RT 20 RT 30
Thermal power                  max kW 5 9 15 20 30
                                       min kW 2.5 4.5 7.5 10 10
Air flow rate m3/h 480 720 1 300 2 600 / 1 900 2 600 / 1 900
Sound level dBA 40 44 47 60 / 52 60 / 52
Air range (without heating) m 11 12 15 19 19
Electrical supply*   3 x 400 V + N - 50 Hz
Current consumption A 7.3 13.1 21.7 29.5 43.9
Wire cross section   For the cross section count 1 mm² for 7 amps
Width A mm 335 405 450 478 478
Height B mm 255 315 520 576 576
Depth C mm 276 335 510 545 545
Mass kg 7 10 22 27 31
* A neutral is essential for the external supply of the fan (single phase 230 V)
